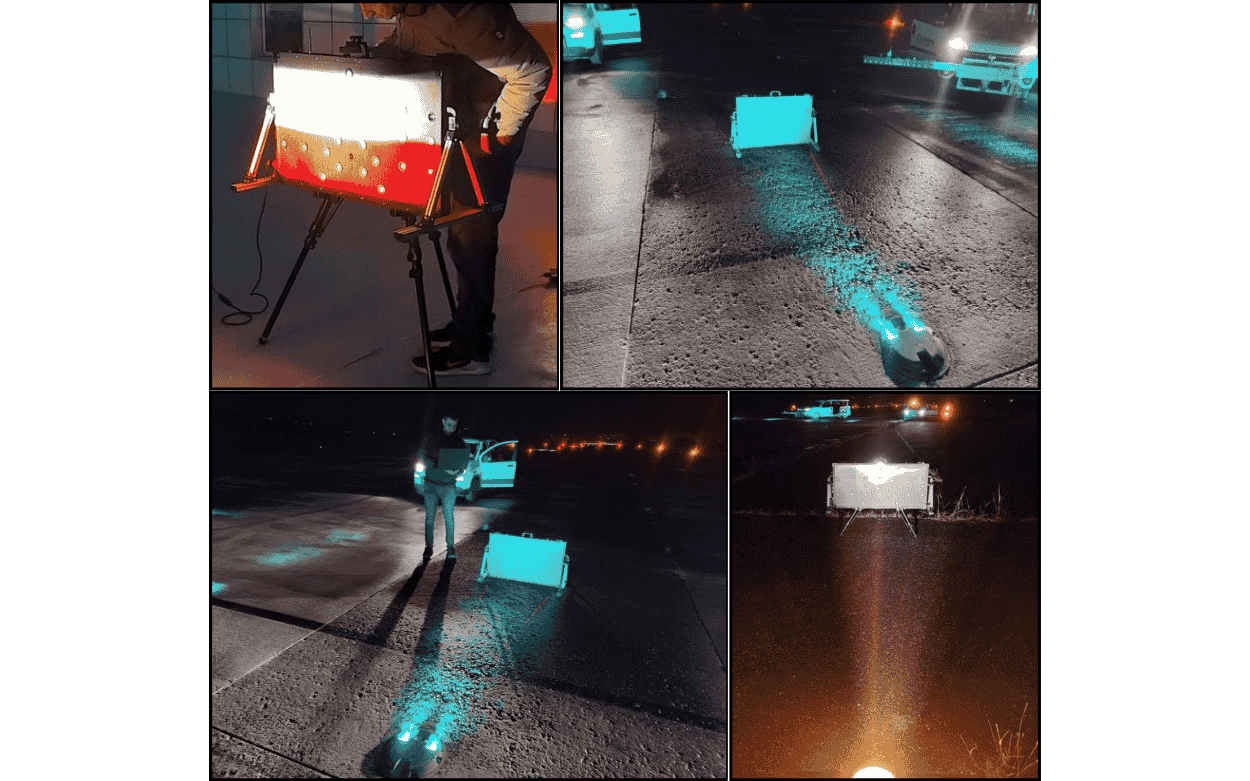

It is a hand use instrument to measure infield lights not reachable by conventional mobile systems, working without a supporting vehicle.

  SMF/Table is basically composed by a sensor table including an array of 25 photometers and colorimeter, integrating GPS module and double lasers pointers to allow the Operator to place the system in the proper way for the measurement.

  SMF/Table is able to measure photometric parameters of PAPI units as well as elevated light at height up to 2 m.

  A 14 Ah Li-Po battery is supplied to guarantee the operation of system up to 8 hours as well as a 5 m power supply cable to be connected to 12 VDC service plug of vehicle.

  A laptop Wi-Fi connected with the sensor table is also supplied for Operator Human Machine Interface.

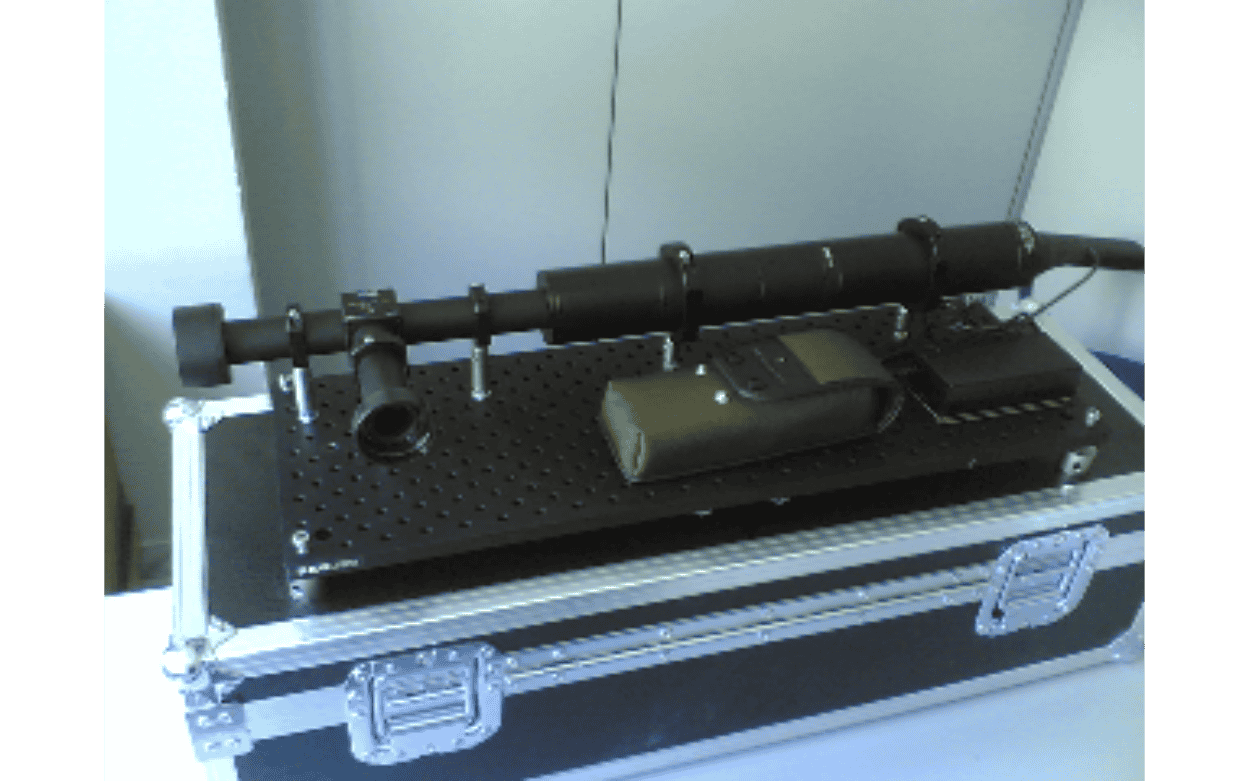

  SMF/MCT is an equipment designed to check the calibration of optical sensors installed on SMF/Mobile, SMF/Lab, & SMF/Table and then to guarantee the specified accuracy in measurement.

  SMF/MCT is based on stable reference light, a reference instrument (Minolta T-10M) and a dedicated software.
